Dashboard - Widgets - Business Process Performance¶
The Business Process Performance widget shows for each Process of a Customer, how often the Process has been triggered within the analysis interval and how long the average execution time was.
A Process is carried out if its Trigger Workflow has identified the prerequisites for it. You configure the frequency of execution of the Trigger Workflow in the Process Management module.
The number and average runtimes of this widget only take account of processes that have been completed successfully.

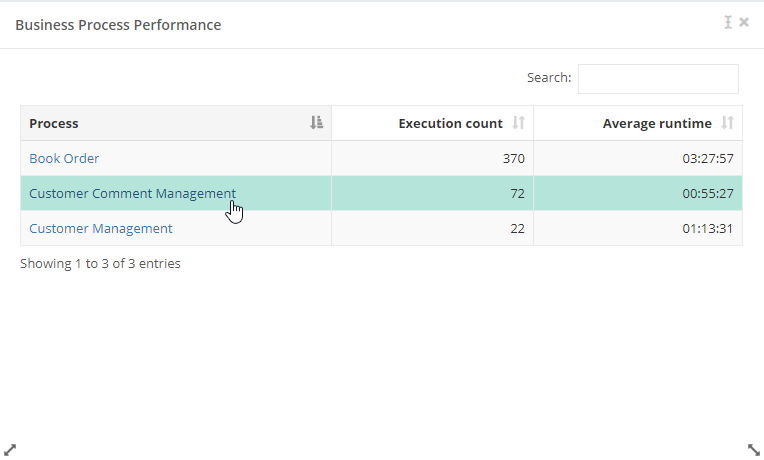

Data representation¶
The processes are displayed in a list.
Columns of the list of Business Process Performance of all processes¶
Process¶
Name of the process
Click on the name of a Process to see Details of the individual process runs.
Execution count¶
Number of successful executions of the Process in the defined time period
Average runtime¶
Average runtime of all successful executions of the Process in the defined time period
Configuration¶
This widget cannot be configured.
Use the sort and filter options of the Business Process Performance of an individual Process list to highlight the information that is relevant for you.
Drill-down¶
If you click on the name of a Process, you can view details of the individual runs of this Process.
Data representation of the list of Business Process Performance of an individual Process¶
The process runs are displayed in a List.
Columns of the list of Business Process Performance of an individual Process¶
Robot¶
Name of the Robot that executed the Process run successfully.
Configuration¶
Name of the Configuration that was used for the successful run
Type¶
Type of Process run
Test¶
The Process was executed as a test run
Productive¶
The Process was executed as a productive run
Start time¶
Time stamp of the start of the Process execution
End Time¶
Time stamp of the end of the Process execution
Duration¶
Duration of the Process execution
Result¶
Result of the process execution
Success¶
The Process run was executed successfully
